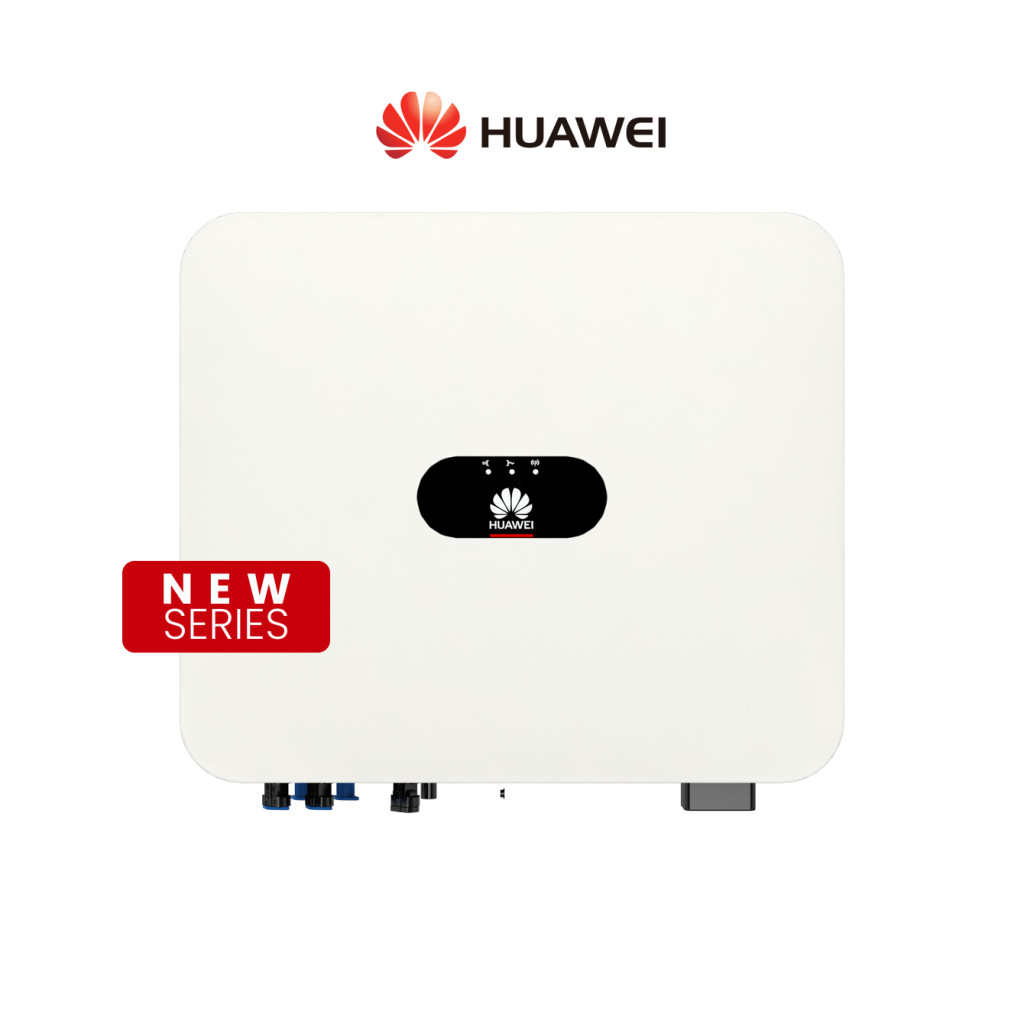

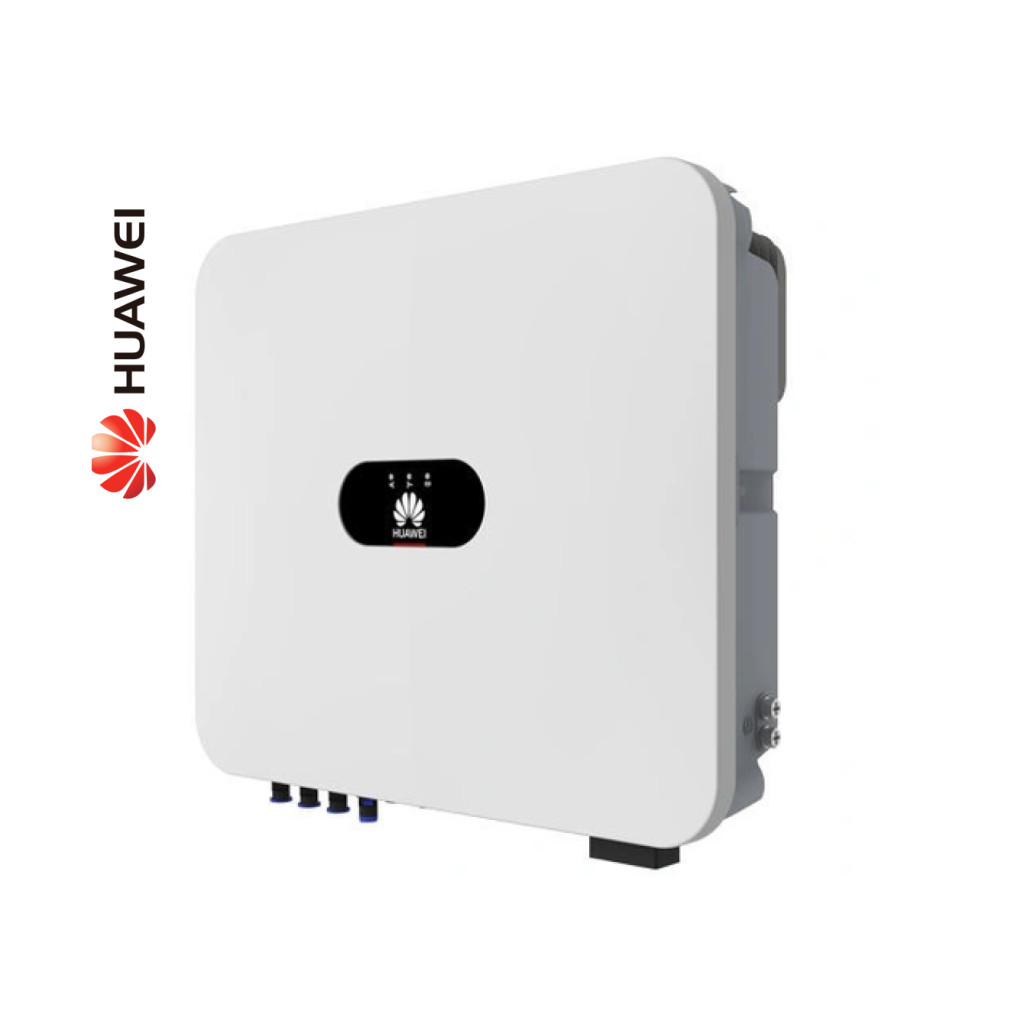

HUAWEI SUN2000-6KTL-LB0 (Hybrid) 6kW

HUAWEI

SUN2000-6KTL LB0

Hybrid inverter, 2 MPPT, 1-phase

MANUFACTURER PART NUMBER: 01077155

Huawei, renowned worldwide for its market-leading innovations and reliable products, offers an intelligent, safe, and efficient solution for residential solar systems with its new single-phase hybrid LB0 inverter series. High energy yield, active safety features, battery compatibility, and ease of use make these inverters an ideal choice for those looking to maximize their solar energy utilization and increase their energy independence.

Details

1 270.86 € (Includes VAT)

Details

Product Benefits

Higher energy yield: Up to 30% more energy can be achieved with the optimizer.
Active safety: Active arc fault protection minimizes fire risk.
Battery compatibility: Plug & Play battery interface. Compatible with LUNA2000-5/10/15-S0 and LUNA2000-7/14/21-S1 batteries.
Smart home integration: LED indicators, built-in WLAN, and FusionSolar app for real-time monitoring.
Various communication options: RS485, WLAN, optional Ethernet via Smart Dongle-WLAN FE (Optional), or 4G/3G/2G via Smart Dongle-4G (Optional).
Reliable operation: Wide operating temperature range: -25°C to +60°C.
Compact and elegant design: Weighs less than 15 kg, and dimensions are 425 mm x 376.5 mm x 150 mm..

Technical Data

Rated AC power: 6000 W.
Number of MPPTs: 2.
Max. input current per MPPT: 16 A.
Surge protection: DC and AC side, TYPE II protection class.
AC connection: 220 Vac/230 Vac/240 Vac, single-phase.
Communication: RS485, WLAN.
Protection class: IP66.
Cooling: Natural convection.
Dimensions (incl. mounting brackets): 425 mm x 376.5 mm x 150 mm.
Weight (incl. mounting brackets): < 15 kg.
Max. efficiency: 97.8%.
European weighted efficiency: 96.8%.

Warranty: 10 years

Take the first step towards energy independence with the HUAWEI SUN2000-6K-LB0 inverter! Order now and enjoy the benefits of clean energy in your home!

Datasheet
