HUAWEI SMART CHARGER AC 22kW (3-Phase)

HUAWEI

SMART CHARGER AC 22KW

AC EV Charger, type 2 charging socket, RFID, 3-phase

MANUFACTURER PART NUMBER: 02314BXL-003

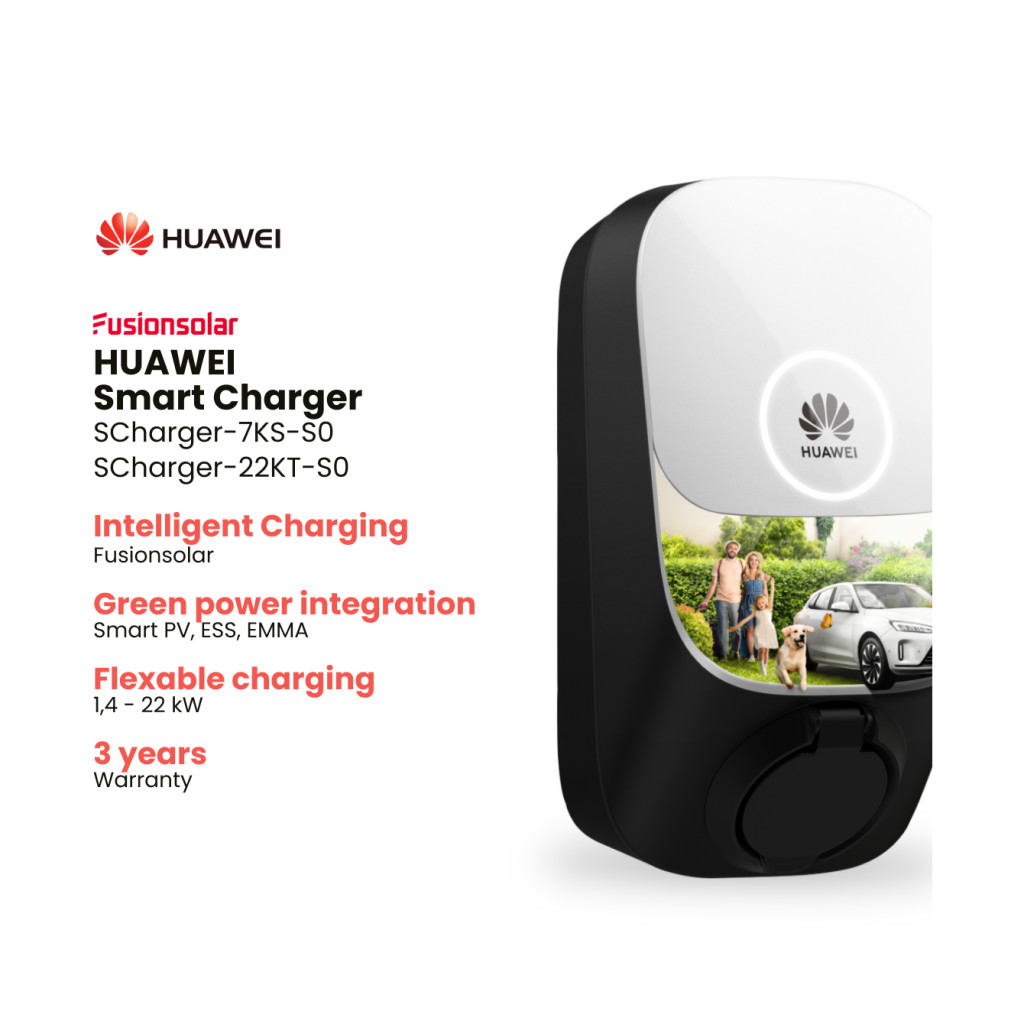

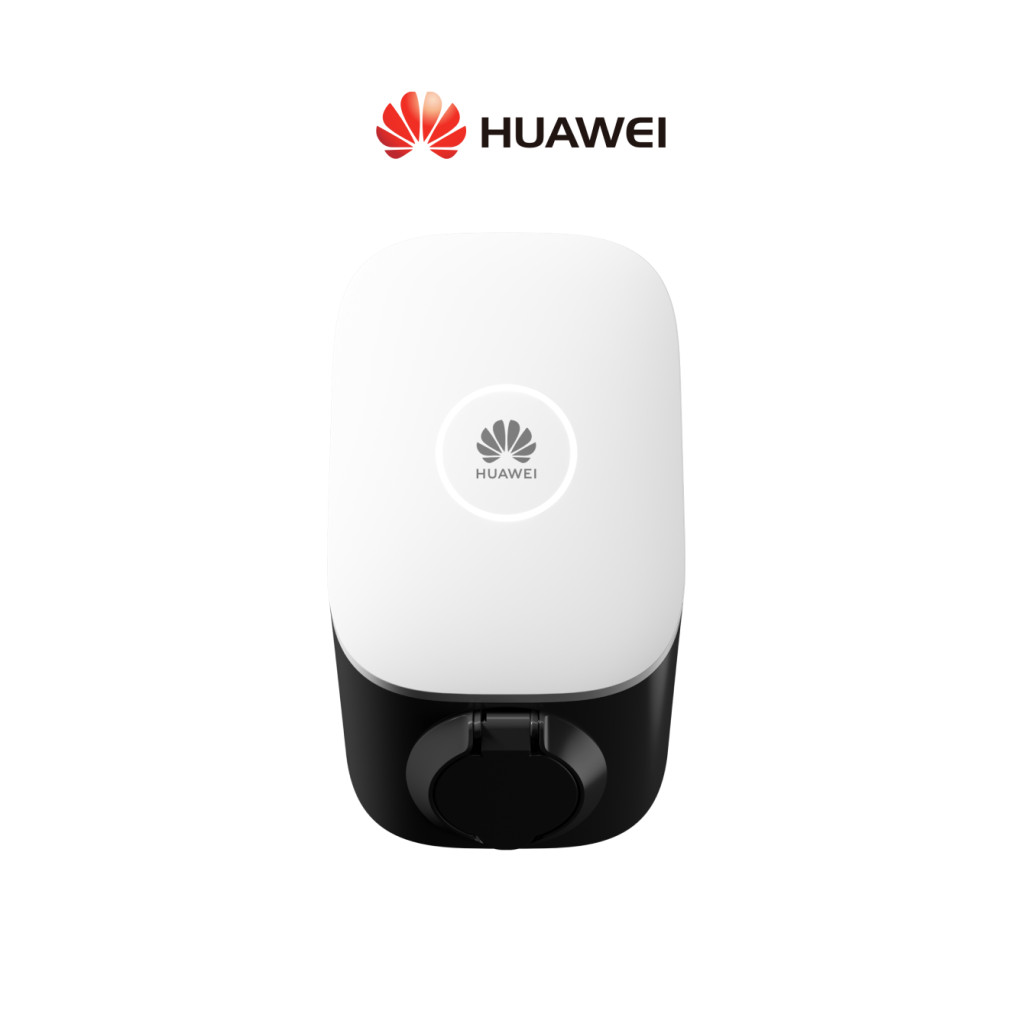

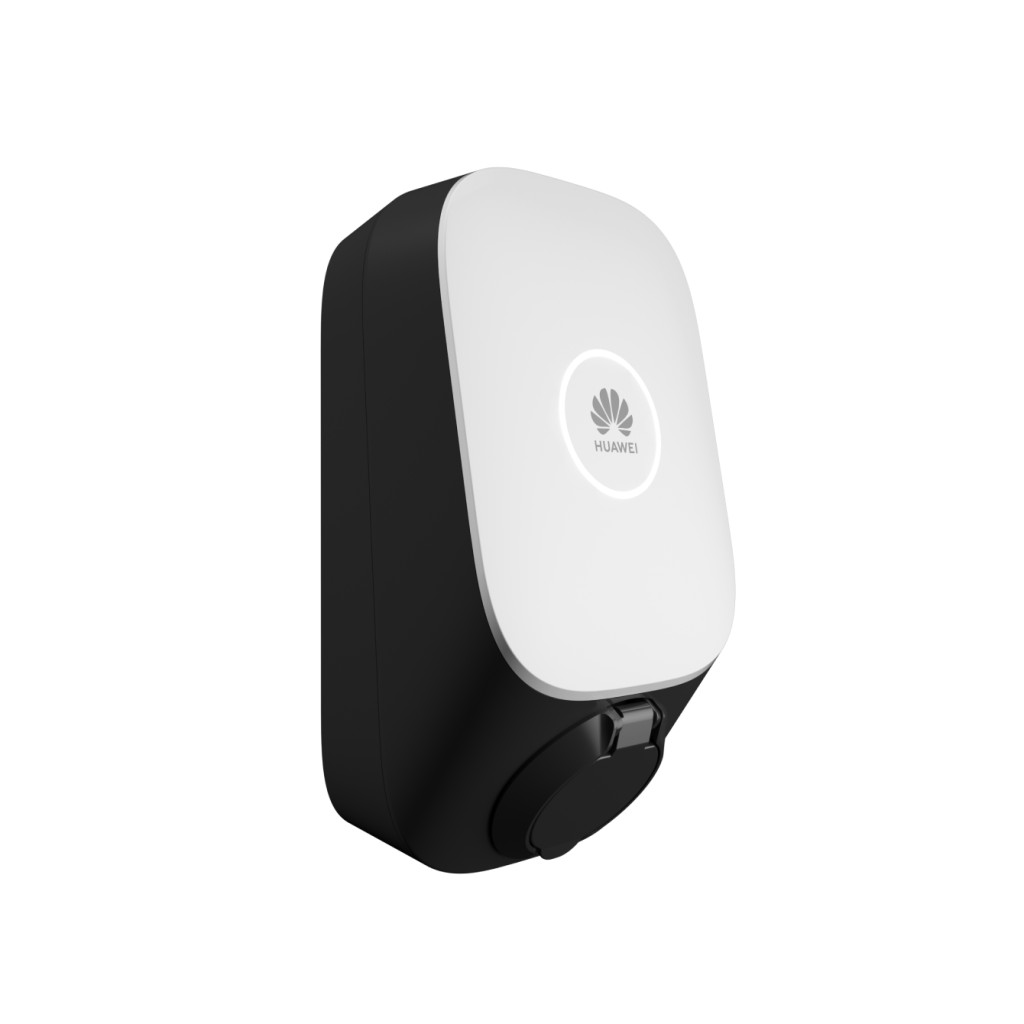

HUAWEI Smart Charger – Efficient and intelligent EV charging.

The HUAWEI Smart Charger is a cutting-edge electric vehicle charging solution designed for residential and commercial use. The HUAWEI Smart Charger enables intelligent energy management with compatible systems such as EMMA (Energy Management and Monitoring Assistant) and SmartGuard. Available in single-phase (7.4 kW) and three-phase (22 kW) models, the Smart Charger provides flexible and efficient charging for your electric vehicle. Imagine it as your electric car's personal "charging station," offering smart features and reliable performance.

Details

548.02 € (Includes VAT)

Details

Key Features and Benefits:

Flexible Charging Power: The HUAWEI Smart Charger offers configurable charging power, from 1.4 kW to 7.4 kW for the single-phase model and from 1.4 kW to 22 kW for the three-phase model, adapting to your specific needs and electrical setup.
Intelligent Charging Modes: Beyond normal charging, scheduled charging and PV (photovoltaic) Energy Preferred modes are available, optimizing energy use and potentially leveraging your solar power system for more sustainable EV charging.
Dynamic Power Adjustment: The charger has dynamic charging capabilities, automatically detecting and adjusting the power to prevent overload, ensuring safe and reliable operation.

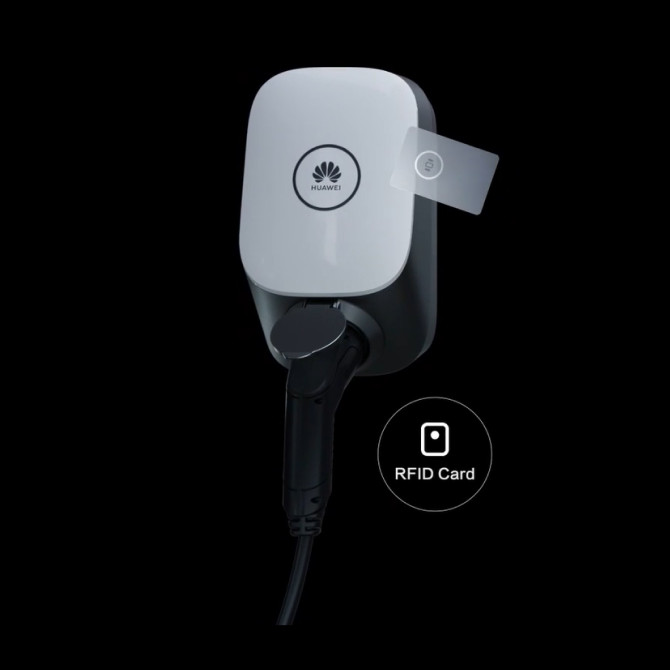

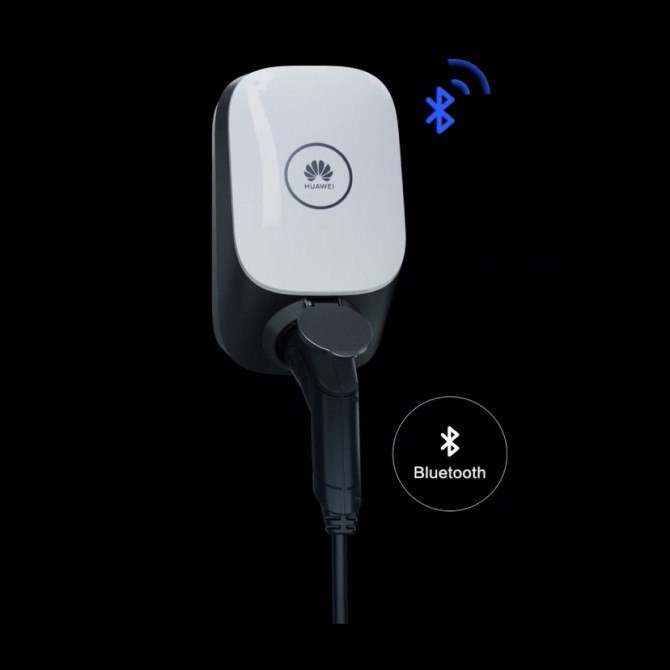

Multiple Authentication Methods: Easily start EV charging with various authentication methods, including RFID, the dedicated mobile application (Fusionsolar), or Bluetooth connectivity.
Safety and Protection: Your safety is paramount. The Smart Charger is equipped with a built-in Type A (30 mA) + DC 6 mA residual current device (RCD) and other safety features such as overcurrent, overheating, and overvoltage protection.
Durable and Weatherproof: Designed for longevity, the Smart Charger has an IP54 rating for outdoor and indoor use and an IK10 impact protection rating, ensuring resistance to various environmental conditions.
Easy Installation: The HUAWEI Smart Charger enables a quick 3-step installation process, making setup convenient and fast.

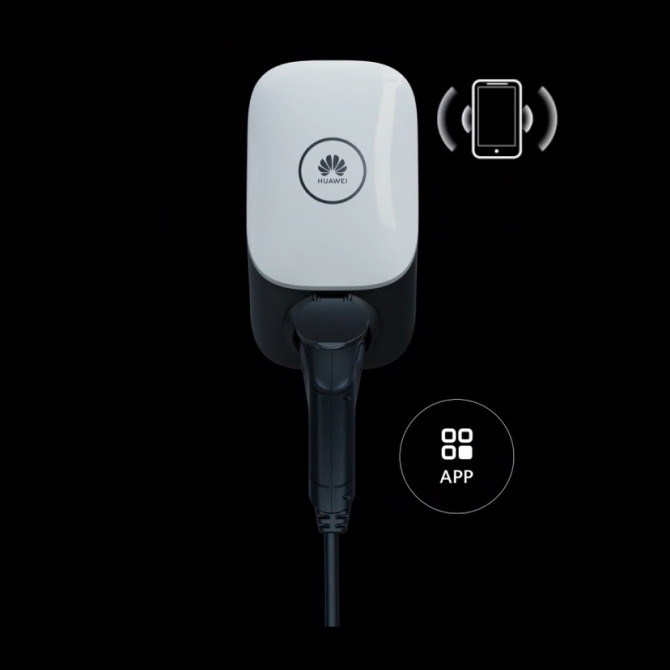

Remote Control and Monitoring: Keep control of the charging process with the dedicated mobile application (Fusionsolar), which allows for remote control and monitoring of charging.

Technical Specifications (SCharger-22KT-S0):

Charging power per charge point: 22 kW
Nominal voltage: 400 V ± 20% (3-phase)
Nominal current: 6-32 A (3 or 1-phase)
Vehicle connection: Type 2 socket
Communication: Wi-Fi / Ethernet, Modbus TCP, OCPP 1.6
Dimensions (H x W x D): 335 mm x 180 mm x 145 mm
Weight: 3.1 kg

Warranty: 3 years

The HUAWEI Smart Charger is an intelligent and reliable choice for EV owners seeking a safe, efficient, and user-friendly charging experience.

Datasheet
